Eclisse Double Fire – Rated Pocket Door System (Rev F)

SKU: SDB020F

The ECLISSE Classic Double Fire-rated Pocket Door System uses our high quality, comprehensively tested pocket door frame with specially designed high density fire-resisting jambs and architrave.

The independently fire-tested and certified ECLISSE Pocket Door System – Fire-Rated Double (FD30).

    • Certified for use with the following Jeldwen 44mm FD30 door panels (not supplied) under field of application report PAR /10057/01 Revision F
        JELD-WEN:

See approved range

      1. XL JOINERY:

See approved range

      1. VICAIMA:

See approved range

  • Compatible and certified for use with the BIAS Soft-Close Anti-Slam

Note: The frame is 70mm and requires two layers of 12.5mm Type F plasterboard either side to give a finished wall thickness of 120mm.

    Product Features and Technical

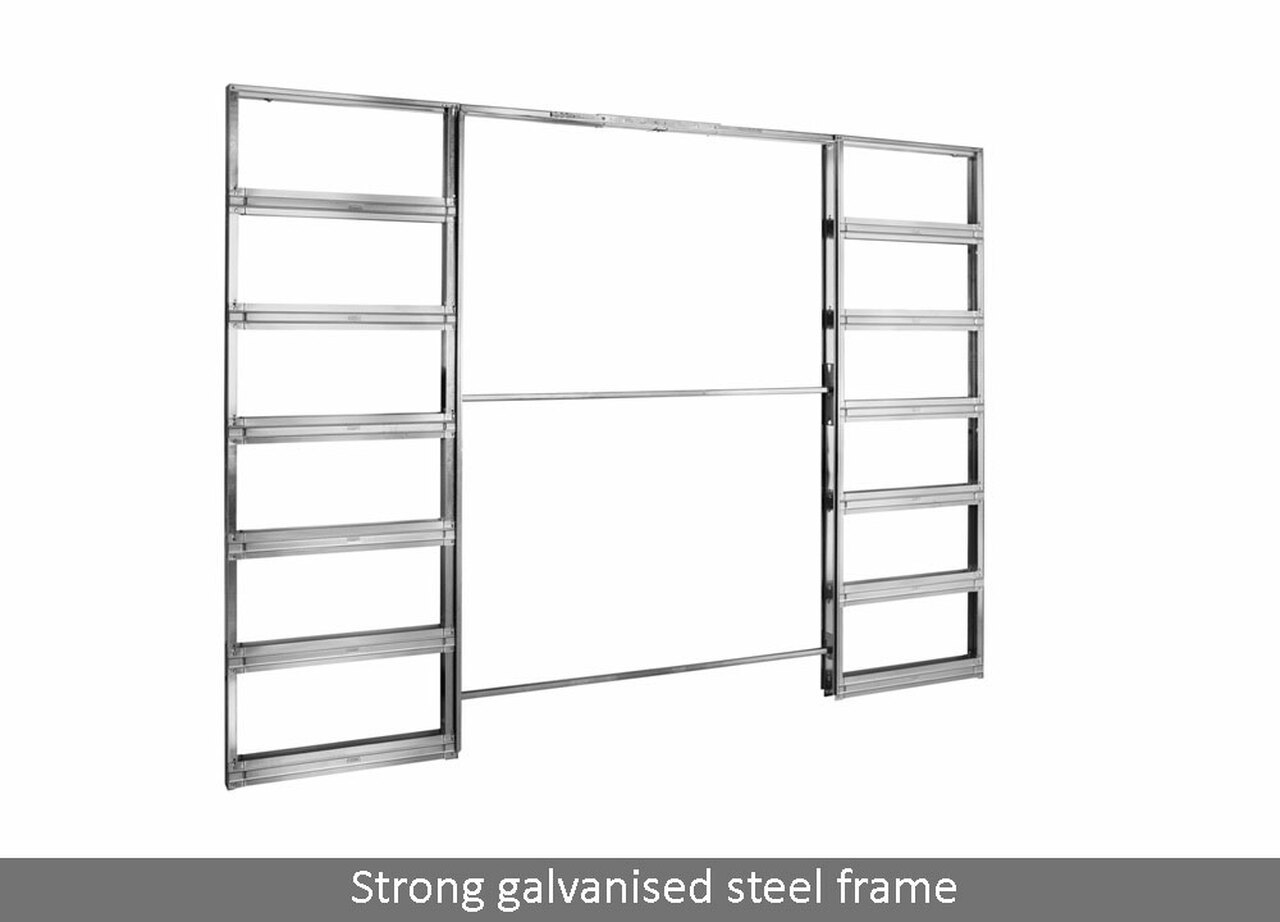

  • Strong galvanised steel frame. A quick-click frame that assembles into a complete unit comprising of full pocket, track and doorpost.
  • Max door panel weight: Up to 100Kg
  • Certified for use with the following Jeldwen 44mm FD30 door panels (not supplied) under field of application report PAR /10057/01 Revision F
  • Finished Wall Thickness: 120mm (frame size 70mm with 2 layers of 12.5mm fireboard required either side)
  • 44mm FD30 Door and 12.5mm Type F plasterboard (not included)

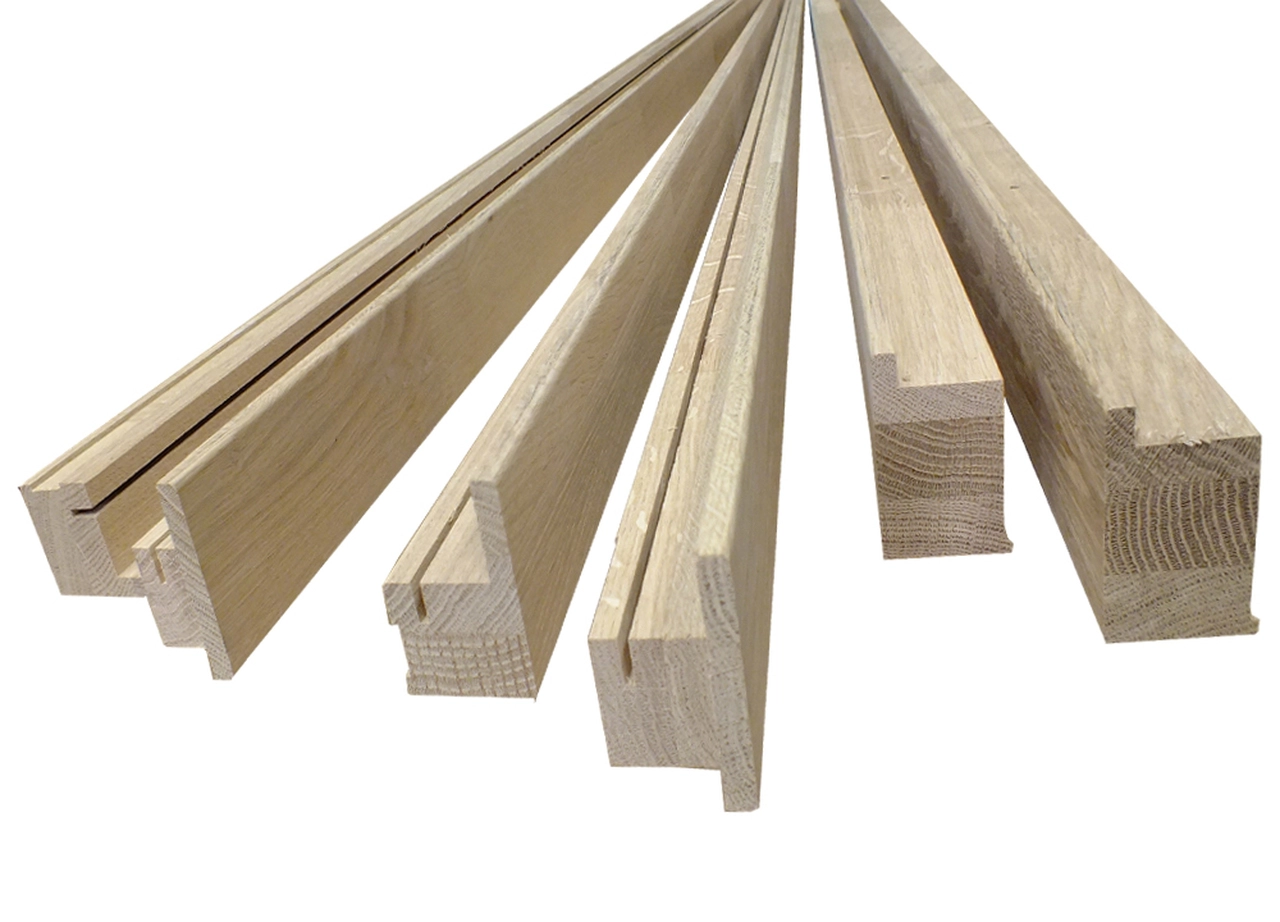

  • The jambs with integrated architrave are manufactured from high density finger jointed oak. The wood is unfinished and paint/stain ready.
  • Intumescent strips are required to be fitted to the jambs and to the meeting stiles of the doors. All the intumescents required are supplied.

To download technical data
click here

To download IFC- Field of Application Report/Fire Certificate.
click here
