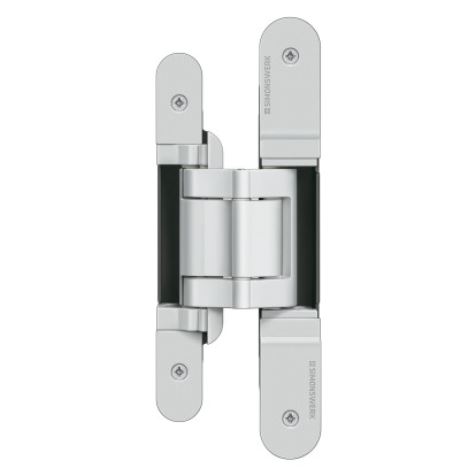

Tectus TE 380 3D Concealed 3D

adjustable hinge for rebated doors, 60kg weight loading

Tectus are the market leader in concealed hinges. Combining German precision and quality with a wide range of models for a variety of applications make these the first choice in many projects, whether residential or commercial.

Description

  Product features
  •  completely concealed hinge system
  •  for timber, steel or aluminium frames
  • for rebated residential doors
  • maintenance-free slide bearings
  •  3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
  •  sideways closed hinge body for a homogeneous mortise appearance
Technical details
  •  Load capacity – 60,0 kg

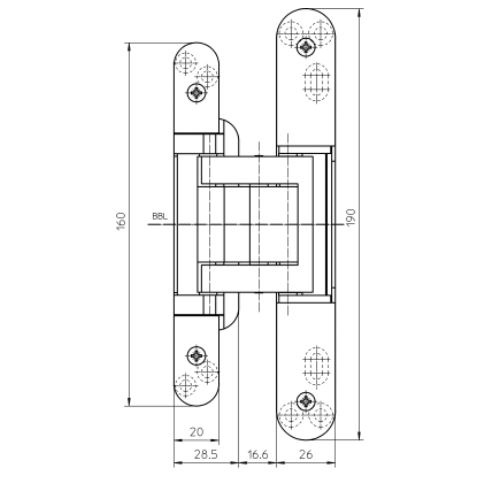

  •  Overall length – 190,0mm
  •  Width (door) – 20,0 mm
  •  Width (frame) – 26,0
  • Cutter Ø – 20,0 mm

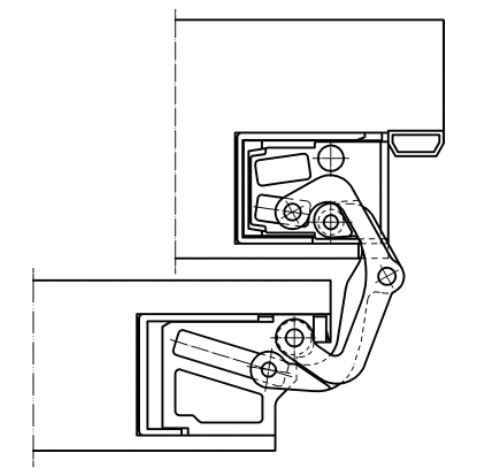

  • Opening angle – 180° degree
Suitable for
  •  Type of door leaf – Timber
  •  Rebate – Unrebated

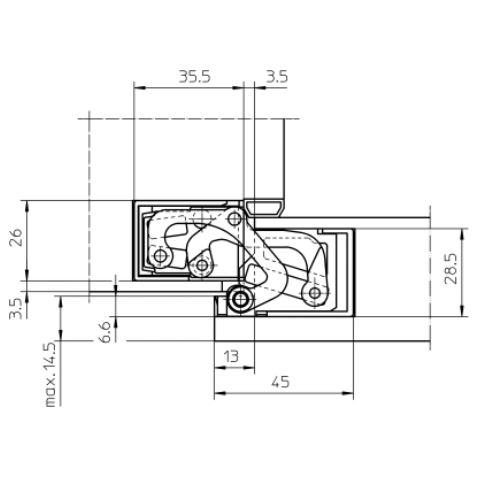

  •  Type of frame – Blind frame, Block frame, Casing frame, Steel frame, Aluminium frame






Additional information

Finish

, , ,
