- completely concealed hinge system
- for timber, steel or aluminium frames
- for unrebated heavy-duty doors
- maintenance-free slide bearings
- 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
- sideways closed hinge body for a homogeneous mortise appearance
- fire resistance, smoke resistance, Soundproof,burglar resistance

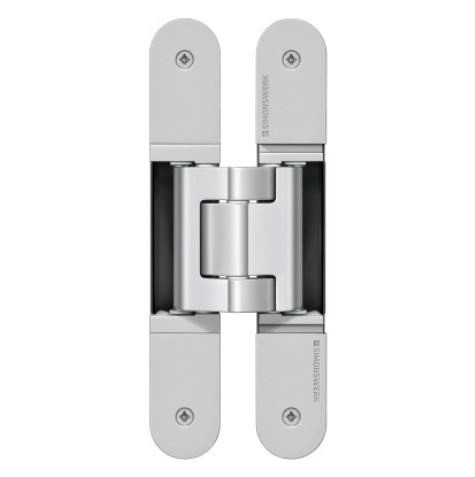

Tectus TE 540 3D Concealed 3D adjustable hinge for doors up to 120kg
SKU: TE540
Tectus are the market leader in concealed hinges. Combining German precision and quality with a wide range of models for a variety of applications make these the first choice in many projects, whether residential or commercial.
Product features
Technical details
- Load capacity – 120,0 kg

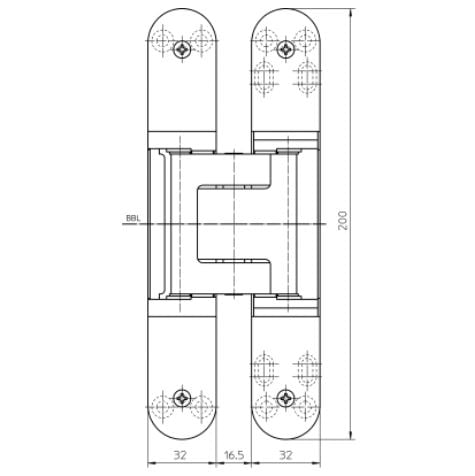

- Overall length – 200,0 mm
- Width (door) – 32,0 mm
- Width (frame) – 32,0 mm
- Cutter Ø – 24,0 mm

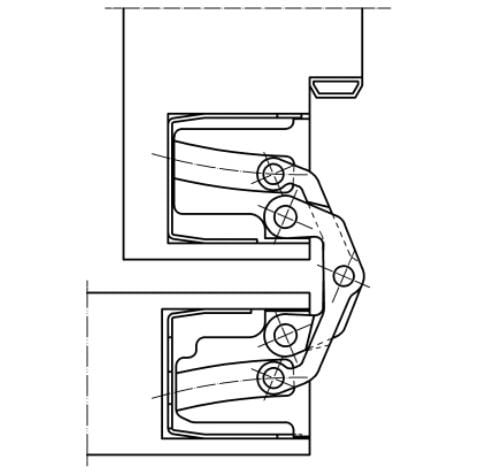

- Opening angle – 180° degree
Suitable for
- Type of door leaf – Timber
- Rebate – Unrebated

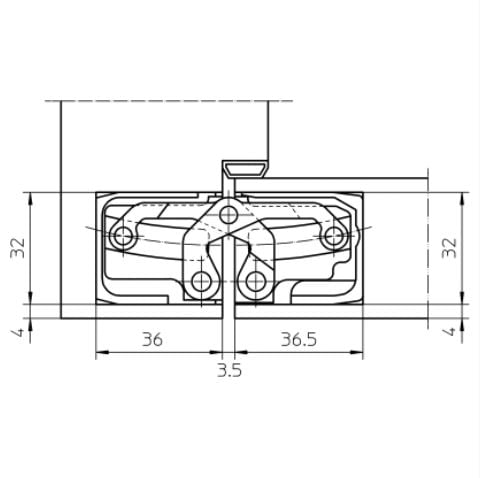

- Type of frame – Blind frame, Block frame, Casing frame, Steel frame, Aluminium frame
