- completely concealed hinge system
- for timber, steel or aluminium frames
- for unrebated and rebated flush residential doors
- maintenance-free slide bearings
- 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,5 mm)
- sideways closed hinge body for a homogeneous mortise appearance

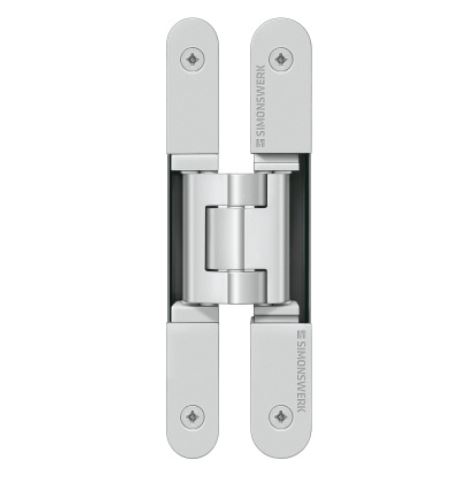

Tectus TE 240 3D N Concealed 3D adjustable hinge for doors up to 60kg
SKU: TE240
Tectus are the market leader in concealed hinges. Combining German precision and quality with a wide range of models for a variety of applications make these the first choice in many projects, whether residential or commercial.
Product features
Technical details
- Load capacity – 60,0 kg

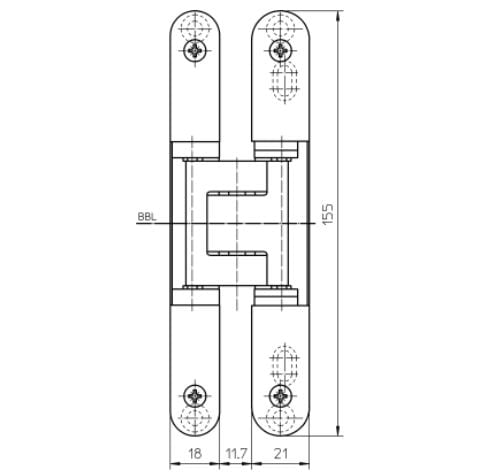

- Overall length – 155,0 mm
- Width (door) – 18,0 mm
- Width (frame) – 21,0 mm
- Cutter Ø – 16,0 mm

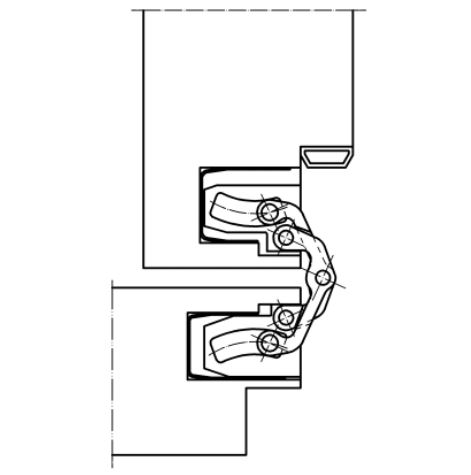

- Opening angle – 180° degree
Suitable for
- Type of door leaf – Timber
- Rebate – Rebated flush, Unrebated

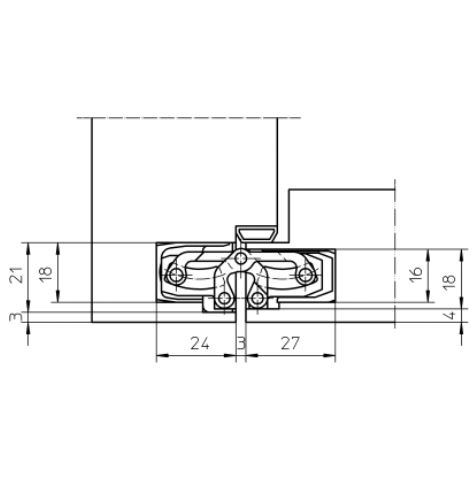

- Type of frame – Blind frame, Block frame, Casing frame, Steel frame, Aluminium frame
