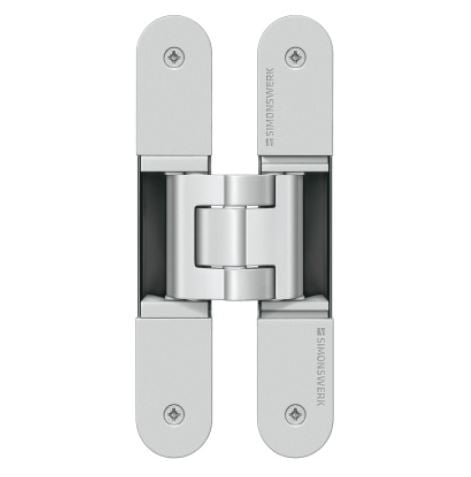

Tectus TE 340 3D Concealed 3D adjustable hinge for doors up to 80kg

SKU: TE340

Tectus are the market leader in concealed hinges. Combining German precision and quality with a wide range of models for a variety of applications make these the first choice in many projects, whether residential or commercial.

  Product features
  •  completely concealed hinge system
  •  for timber, steel or aluminium frames
  •  for unrebated residential and heavy-duty doors
  • maintenance-free slide bearings
  •  3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,5 mm)
  •  sideways closed hinge body for a homogeneous mortise appearance
  •  fire resistance, smoke resistance, burglar resistance
Technical details
  •  Load capacity – 80,0 kg

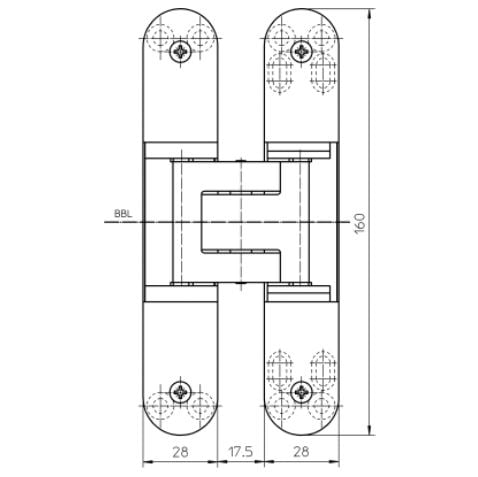

  •  Overall length – 160,0 mm
  •  Width (door) – 28,0 mm
  •  Width (frame) – 28,0 mm
  • Cutter Ø – 24,0 mm

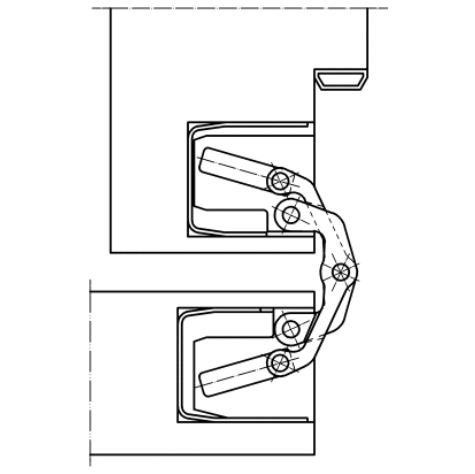

  • Opening angle – 180° degree
Suitable for
  •  Type of door leaf – Timber
  •  Rebate – Unrebated

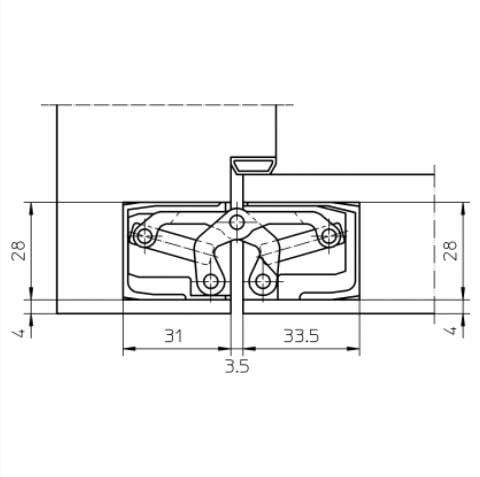

  •  Type of frame – Blind frame, Block frame, Casing frame, Steel frame, Aluminium frame
