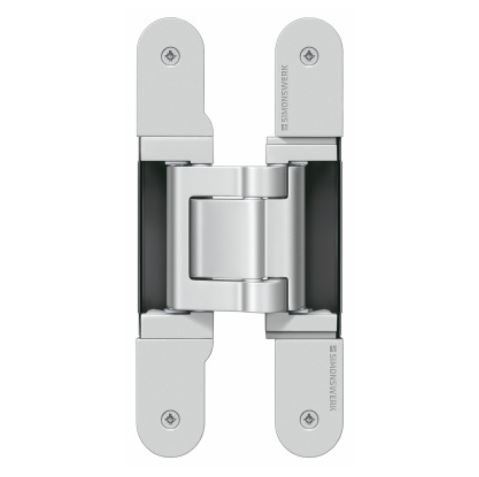

Tectus TE 541 FVZ Concealed 3D

adjustable hinge for doors with recessed frame facings, 100kg weight loading

Tectus are the market leader in concealed hinges. Combining German precision and quality with a wide range of models for a variety of applications make these the first choice in many projects, whether residential or commercial.

Description

  Product features
  •  completely concealed hinge system
  •  for timber, steel or aluminium frames
  • for unrebated heavy-duty doors
  • maintenance-free slide bearings
  •  3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
  •  sideways closed hinge body for a homogeneous mortise appearance

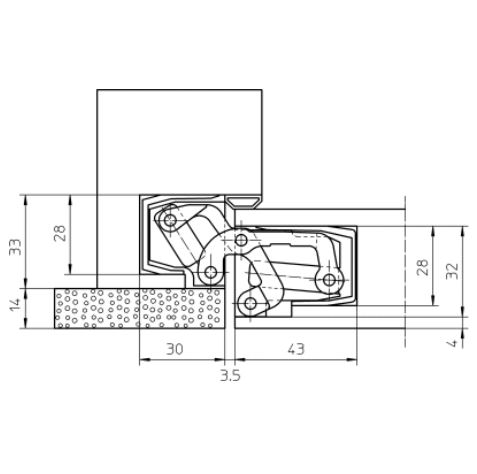

  • FVZ = for recessed frame facings
  • recessed frame facings up to 14,0 mm
  •  Fire resistance, Smoke resistance, Soundproof
Technical details
  •  Load capacity – 100,0 kg

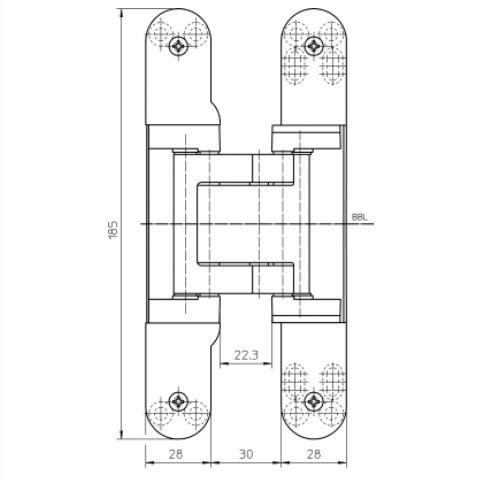

  •  Overall length – 185,0mm
  •  Width (door) – 28,0/32,0 mm
  •  Width (frame) – 28,0/33,0 mm
  • Cutter Ø – 24,0 mm

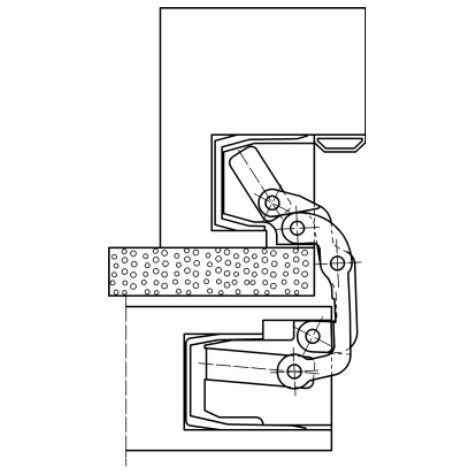

  • Opening angle – 180° degree
Suitable for
  •  Type of door leaf – Timber
  •  Rebate – Unrebated
  •  Type of frame – Blind frame, Block frame, Casing frame, Steel frame, Aluminium frame






Additional information

Finish

, ,
